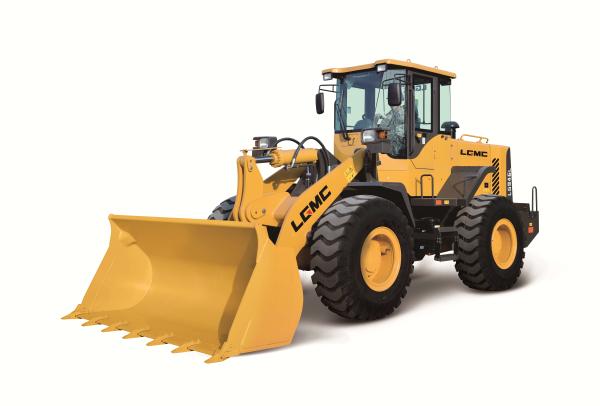

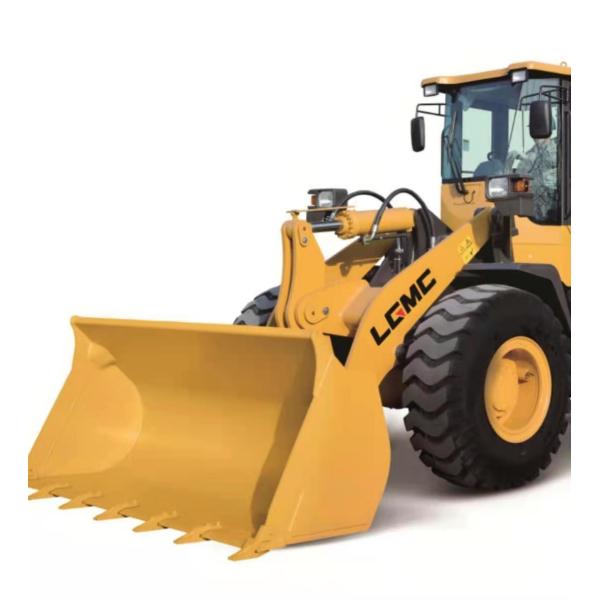

G946 12Ton Agricultural Construction Machinery Heavy Duty Front Wheel Loader
Product Description:
· Place of Origin: China
· Model Number:G946
· Name:FRONT WHEEL LOADEER
· Warranty: 3 Months
· Delivery: 10-15 Working Days
· Stock quantity: available
Packaging & Delivery :
Packaging Details: Container
Port: QINGDAO
PAYMENT: 30% AS DEPAOISTS ,THE BALANCE SHOULD PAID BEFORE SHIPMENT.
| Item | Specification | Item | Specification |
| | Transmission system |
| Overall working weight | 12700kg | Torque converter type | Single stage, four element, double t urbo |
| Rated capacity | 2.3cbm | Torque ratio | 4.0 |
| Rated load | 4000KG | Transmission type | Planetary power shift |
| Max tractive force | 120KN | Gear shift | 2 forward ,1 reverse |
| Max breakout force | 125KN | Max speed | 38km/h |
| Max grade ability | 28° | Front and rear axles |
| Max dump height | 2950mm | Main transmission type | Spiral gear, first stage decelerate |
| Max dump distance | 1055mm | Final decelerate type | First stage, planetary gear decelerate |
| Overall dimensions | 7295*2574*3240mm | Tire |
| Engine | Type specification | 20.5-25 |
| Model | WP6G160E20 | Front tire pressure | 0.34±0.01MPa |
| Type | Inline ,water cooling ,wet cylinder, direct injection | Rear tire pressure | 0.285±0.01MPa |
| Number of cylinder-bore/stroke | 6-∮105*130mm | Steering system |
| Max torque | 640N.m | Type | Articulated load-sensing hydraulic steering system |
| Rated power | 118KW | Steering angle | R/L38° |
| Rated speed | 2000r/min | Min turning radios | Outside of bucket 6116mm outside of rear wheel 5365mm |
| Min oil consumption | ≦210g/kw.h | Brake system |
| Hydraulic system | Service brake | Air over hydraulic disc brake |
| System working pressure | 16MPa | Parking brake | Air operated internal expansion brake |
| Boom lifting time | ≦5.7s | Fill capacity |
| Total time | ≦10.2s | Fuel | 140L |
| Control type | Priority Pilot Control | Hydraulic oil | 124L |
